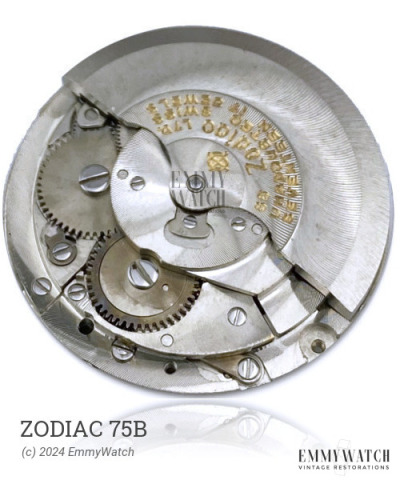

Zodiac 75B
Ligne: 11.5'''
Jewels: 17
Power Reserve: 45 hrs
Frequency: 18000 vph
Type: Automatic
Period used: 1960-1971
Diameter: 26 mm
Height: 5.35 mm
Hands: 1.50 x 0.90 x 0.21 mm
The Zodiac 75B watch movement, which was in use from 1960 to 1971, offered a range of functions including automatic winding and sweep seconds. Additionally, it featured incabloc shock protection and the option of plastic bushings instead of dial screws.
The Zodiac 75B features the following functions:
- Automatic Winding
- Incabloc Shock Protection
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 4865 | Ordinary/None | Buy staff |
| 4865 | Incabloc | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.20 x 0.100 x 340 x 10.0 mm | GR2922X | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
