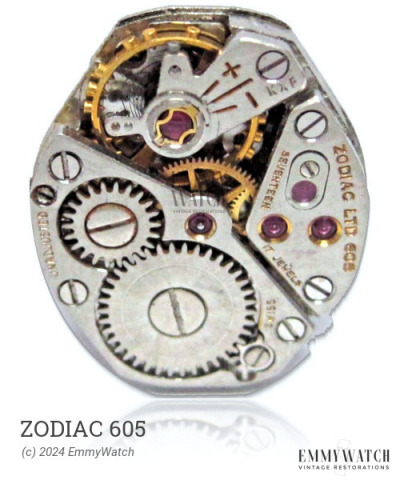

Zodiac 605
Ligne: 18.5'''
Jewels: 15/16
Lift Angle: 52°
Power Reserve: 38 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1930
Diameter: 41.8 mm
Height: 4.1 mm
Hands: 1.63 x 1.00 / 0.28 mm
The Zodiac 605 is a hunter calibre watch movement that features a Breguet hairspring and various bridge shapes. It offers functions such as stem winding and setting, as well as a sub-second display. This movement was commonly used during the period around 1930.
The Zodiac 605 features the following functions:
- Stem wind and set
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.70 x 0.170 x 560 x 16.0 mm | GR5052 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
