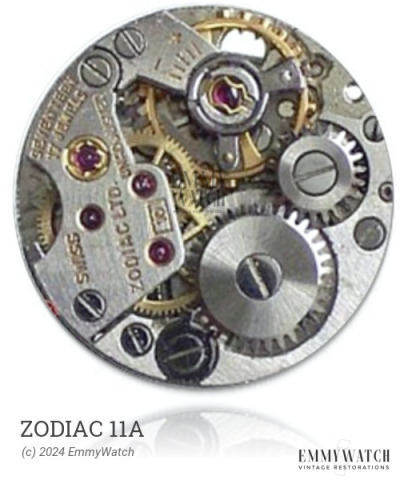

Zodiac 11A
Ligne: 19'''
Jewels: 15
Power Reserve: 41 hrs
Frequency: 18000 vph
Type: Manual Wind
Diameter: 42.9 mm
Height: 5.3 mm
Hands: 1.95 x 1.00 / 0.28 mm
The Zodiac 11A watch movement possesses options such as a bimetallic screw balance and a Breguet hairspring. The 41, 43, 45, 47, and 49 variations share numerous similarities, with the exception of varying bridge layouts. This movement provides the functions of stem winding and setting, as well as a sub-second display.
The Zodiac 11A features the following functions:
- Stem wind and set
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 2.30 x 0.200 x 460 x 16.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
