Zentra 223
Ligne: 19'''
Jewels: 15
Power Reserve: 42 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1903
Diameter: 42.9 mm
Height: 6.2 mm
Hands: 1.75 x 0.66 / 0.28 mm

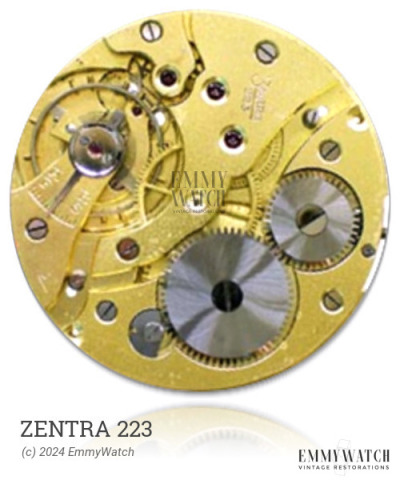

The Zentra 223 watch movement is a caliber that was commonly used in open face or hunter watches around 1903. It features a bimetallic screw balance with two adjustment screws and the option of a Breguet hairspring. The movement is designed for stem winding and pin setting, with sub-second functionality.
The Zentra 223 features the following functions:
- Stem wind and pin set
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
