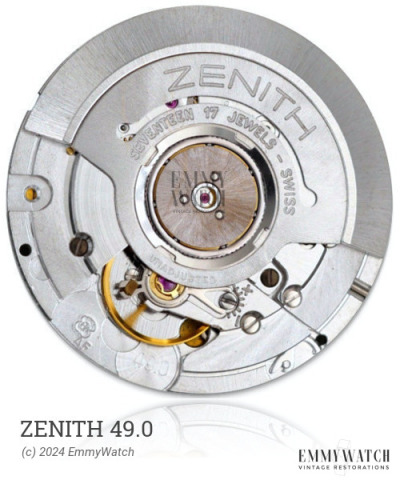

Zenith 49.0
Ligne: 11.5'''
Jewels: 17/23
Lift Angle: 46°
Power Reserve: 40 hrs
Frequency: 21600 vph
Type: Automatic
Period used: ~1978
Diameter: 26 mm
Height: 4.55 mm
Hands: 1.40 x 0.85 x 0.20 mm
The Zenith 49.0 watch movement is a member of the last calibre family from Bulova. Its design features an indirectly driven minute hand, which allows for a relatively large balance and a low profile. This movement incorporates several functions, including automatic winding, a sweep second hand, and a date feature that can be quickly set by repeated pulling and pushing of the crown. The Zenith 49.0 movement was used during the approximate period of 1978.
The Zenith 49.0 features the following functions:
- Automatic Winding
- Date: quickset by repeated pulling and pushing the crown
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.10 x 0.115 x 320 x 10.0 mm | GR2644X | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
