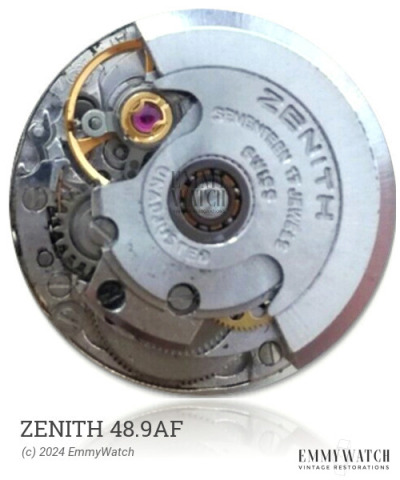

Zenith 48.9AF
Ligne: 11.5'''
Jewels: 25
Power Reserve: 39 hrs
Frequency: 18000 vph
Type: Automatic
Period used: ~1960
Diameter: 26 mm
Height: 5.5 mm
Hands: 1.50 x 0.90 x 0.19 mm
The Zenith 48.9AF watch movement is available in early samples with a fixed stud carrier and in late samples with a mobile stud carrier and pierced balance cock. It features automatic winding, sweep second movement, and a date function that can be set by changing the 20:50-24h. This movement also includes an automatic feature, a calendar function, and has been commonly used around the period of 1960.
The Zenith 48.9AF features the following functions:
- Automatic Winding
- Calendar
- Date: set by changing 20:50-24h
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 4272 | Ordinary/None | Buy staff |
| 4272 | Incabloc | Buy staff |
| 4272 | Monorex | Buy staff |
| 4272 | Rubyshock | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.20 x 0.110 x 9.5 mm | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
