Zenith 2542P
Ligne: 13.75'''
Jewels: 17
Power Reserve: 44 hrs
Frequency: 28800 vph
Type: Automatic
Period used: 1973-1980
Diameter: 31 mm
Height: 8.0 mm
Hands: 2.30 x 1.60 x 1.05 x 0.25 / 0.35 x 0.20 mm
Base: Lemania 1341
The Zenith 2542P watch movement was in use from 1973 to 1980. This movement featured an automatic chronograph function with measurements of 60 seconds, 60 minutes, and 12 hours. The chronograph was cam-switched and had a center-minute and -second display. Additionally, the movement included a sub-second function and a quickset date feature.
The Zenith 2542P features the following functions:
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.05 x 0.100 x 12.0 mm | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|

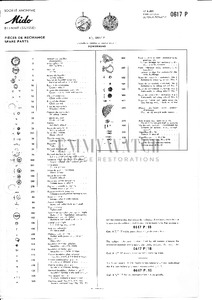

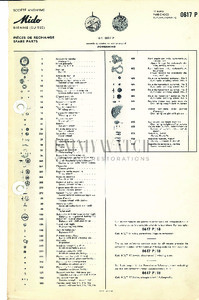

Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
