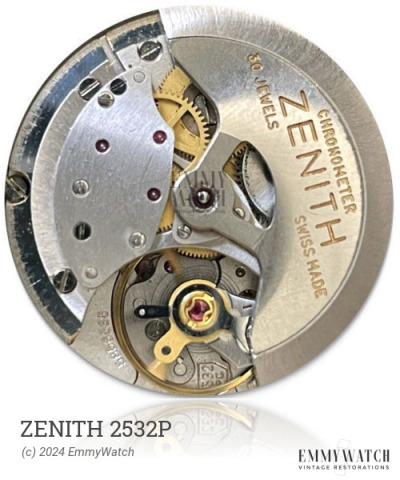

Zenith 2532P
Ligne: 12'''
Jewels: 17
Power Reserve: 41 hrs
Frequency: 18000 vph
Type: Automatic
Period used: 1952-1960
Diameter: 28 mm
Height: 5.5 mm
Hands: 1.30 x 0.84 mm
Base: A. Schild 1466
The Zenith 2532P watch movement was produced exclusively for Mido from 1952 to 1960. It has a base plate of the AS 1131/1132 and offers optional black rhodium plating. The movement offers the option of a Fonto regulator with a mobile stud carrier and adjustable regulator pin-width, as well as the unique Incastar regulator. The Incastar regulator is the only large-scale produced regulator that features a free oscillating hairspring, with the end of the spring fixed between two rollers to adjust its length. The design eliminates the isochronism error caused by the gap between the regulator pins.
The Zenith 2532P features the following functions:
- Automatic Winding
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 3819 | Ordinary/None | Buy staff |
| 3819 | Incabloc | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.35 x 0.090 x 280 x 8.5 mm | GR3498X | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
