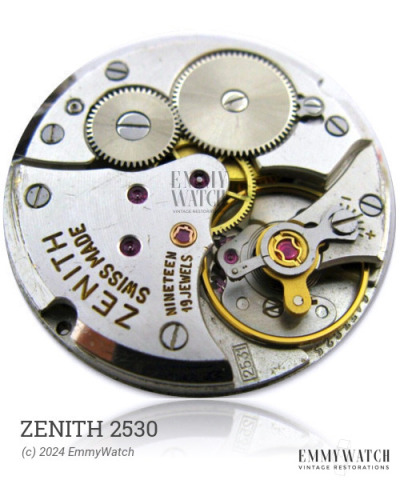

Zenith 2530
Ligne: 10.5'''
Jewels: 15/17
Power Reserve: 43 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1945-1950
Diameter: 23.3 mm
Height: 4.1 mm
Hands: 1.15 x 0.79 x 0.18 mm
The Zenith 2530 watch movement was in operation during the period of 1945-1950. It features a Breguet hairspring and an unusual indirect sweep second mechanism, with the driving wheel placed under the train bridge. The distinctions between the 260 and 260M variations are not specified. The movement is manually wound and includes a sweep second function.
The Zenith 2530 features the following functions:
- Manual Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.100 x 290 x 9.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
