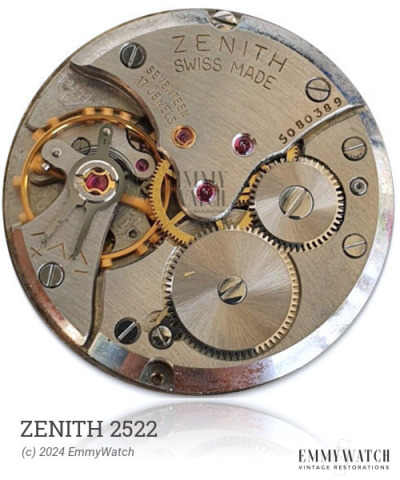

Zenith 2522
Ligne: 16.5'''
Jewels: 15
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1940
Diameter: 37.2 mm
Height: 3.7 mm
Hands: 2.04 x 1.15 / 0.28 mm
The Zenith 2522 is an open face calibre watch movement with varying bridge shapes. Not much is known about the specific differences between the 287, 289, 295, 307, 341, 349, 351, 353, 355, and 493 movements. The Zenith 2522 movement features stem winding and setting, as well as a sub-second function. It was commonly used around the period of 1940.
The Zenith 2522 features the following functions:
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.30 x 0.170 x 460 x 14.0 mm | GR3395 | Manual | Buy mainspring |
| 1.30 x 0.170 x 410 x 14.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
