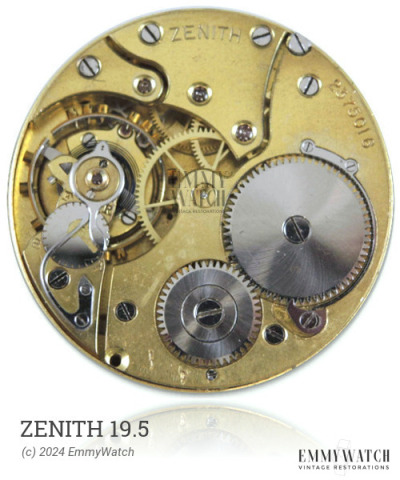

Zenith 19.5
Jewels: 15
Power Reserve: 34 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1903-1905
Diameter: 39.75 mm
Height: 5.0 mm
Hands: 1.50 x 0.92 / 0.26 mm
The Zenith 19.5 watch movement was produced from 1903 to 1905, during which 26,500 units were manufactured. It features a hunter caliber, model 2, with a bimetallic screw balance and a Breguet hairspring. The movement also includes a negative stem mechanism with an adjustable switching point. Its functions include stem winding and setting, as well as a sub-second display.
The Zenith 19.5 features the following functions:
- Stem wind and set
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 2.05 x 0.200 x 520 x 15.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
