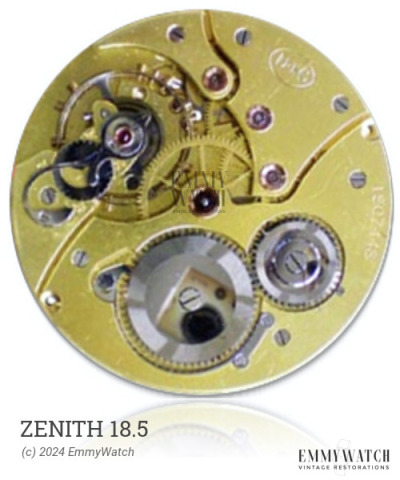

Zenith 18.5
Ligne: 11.5'''
Jewels: 17
Power Reserve: 42 hrs
Frequency: 21600 vph
Type: Manual Wind
Period used: ~1972
Diameter: 26 mm
Height: 4.65 mm
Hands: 1.50 x 0.90 x 0.21 mm
The Zenith 18.5 watch movement is a manual wind movement with a sweep second hand. It features a day display at the 9 o'clock position and a quickset date function. The movement is equipped with shock protection and supports a day and date display. Additionally, it includes a sweep seconds hand and a calendar with a quickset feature. This movement was commonly used around 1972.
The Zenith 18.5 features the following functions:
- Calendar with quickset
- Date: quickset
- Day at 9h
- Manual Winding
- Shock Protection
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.30 x 0.105 x 300 x 9.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More | |||
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
