Zenith 126-6
Ligne: 11.5'''
Jewels: 17/21
Power Reserve: 48 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1953
Diameter: 26 mm
Height: 3.6 mm
Hands: 1.50 x 0.90 x 0.22 mm

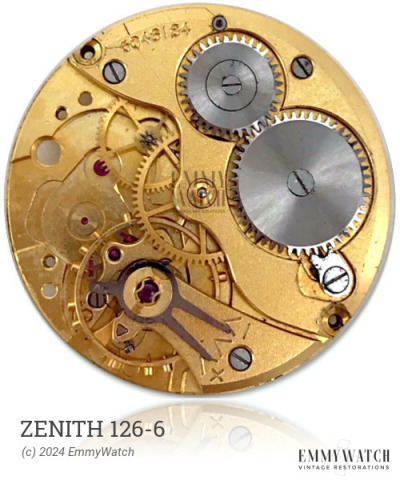

The Zenith 126-6 watch movement, manufactured around 1953, encompasses a manual wind mechanism along with a sweep second function. Notably, it incorporates a relatively large balance, facilitated by the peculiar indirectly driven minute hand. Variations and discrepancies between the 1407U and its counterpart, the 1407G, remain undisclosed.
The Zenith 126-6 features the following functions:
- Manual Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.30 x 0.100 x 10.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
