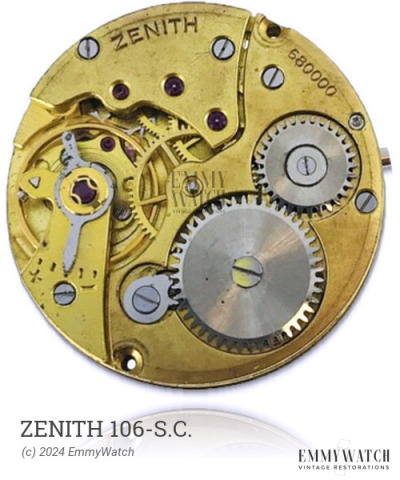

Zenith 106-S.C.
Ligne: 16'''
Jewels: 15
Power Reserve: 36 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1945
Diameter: 36.1 mm
Height: 3.5 mm
Hands: 1.80 x 1.00 / 0.26 mm
The Zenith 106-S.C. watch movement is an open face calibre movement, which shares similarities with the 1058, 1059, and 1070 movements in terms of bridge layouts, crown-wheel bearings, and clicks. This movement offers functions including stem winding and setting, a sub-second subdial, and right setting. It was commonly used around the year 1945.
The Zenith 106-S.C. features the following functions:
- Stem wind and set
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.30 x 0.170 x 420 x 14.0 mm | GR3393 | Manual | Buy mainspring |
| 1.30 x 0.170 x 410 x 14.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
