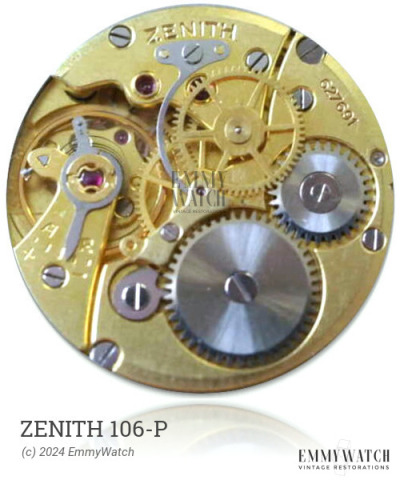

Zenith 106-P
Ligne: 16'''
Jewels: 15
Power Reserve: 32 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1945
Diameter: 36.1 mm
Height: 4.15 mm
Hands: 1.80 x 1.00 / 0.28 mm
The Zenith 106-P watch movement is an open face calibre with varying bridge layouts, crown-wheel bearings, and clicks. It shares similarities with other movements such as the 1052, 1054, 1067, 1068, 1148, 1369, and 1379. The movement features stem winding and setting, as well as a sub-second function. It was commonly used around the year 1945.
The Zenith 106-P features the following functions:
- Stem wind and set
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.70 x 0.160 x 460 x 14.0 mm | GR5031 | Manual | Buy mainspring |
| 1.70 x 0.160 x 430 x 14.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
