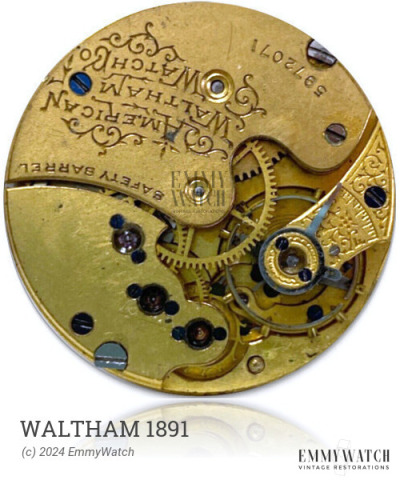

Waltham 1891
Ligne: 12'''
Jewels: 1
Power Reserve: 32 hrs
Frequency: 18000 vph
Type: Manual Wind
Diameter: 27.07 mm
Height: 4.85 mm
Hands: 1.90 x 1.10 mm
The Waltham 1891 is a mechanical watch movement featuring a pin-lever escapement, an indirect minute hand friction clutch on the barrel, and a stem mechanism without a setting-lever spring. It is a manual wind movement with sub-seconds and pin lever functionality.
The Waltham 1891 features the following functions:
- Manual Winding
- Pin lever
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
