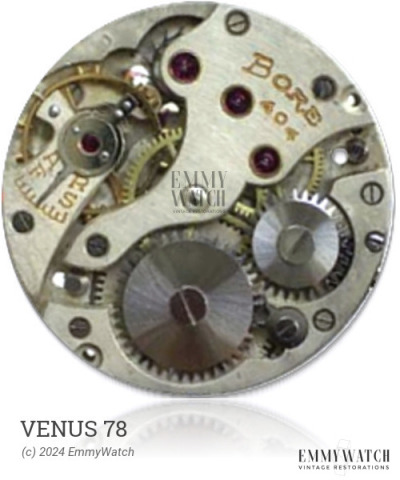

Venus 78
Ligne: 11.5'''
Jewels: 17
Lift Angle: 52°
Power Reserve: 45 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1955
Diameter: 26 mm
Height: 4.07 mm
Hands: 1.50 x 0.90 x 0.22 mm
The Venus 78 watch movement shares similarities with the A. Schild 1551 movement, with differences that are currently unknown. It is a manual wind movement that includes a sweep seconds function. The movement was commonly used around 1955.
The Venus 78 features the following functions:
- Manual Winding
- Sweep Seconds
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 4110 | Ordinary/None | Buy staff |
| 5429 | Ordinary/None | Buy staff |
| 4042 | Incabloc | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.100 x 315 x 9.5 mm | Manual | Buy mainspring | |
| 1.40 x 0.100 x 320 x 9.0 mm | GR3665 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
