Venus 220
Jewels: 17
Power Reserve: 33 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1886-1894
Diameter: 45.75 mm
Height: 10.1 mm
Hands: 2.46 x 1.27 / 0.30 mm

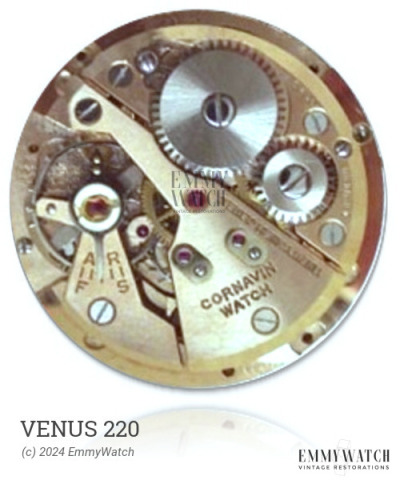

The Venus 220 watch movement was manufactured between 1886 and 1894, with a total of 69,000 units produced during this period. It features an open face calibre, specifically model 5, and is equipped with a bimetallic screw balance and Breguet hairspring. Unusually, the ratchet is located under the base plate, and it incorporates a negative stem mechanism with a rocker bar. The movement includes the following functions: stem wind, with switching options using either the crown or lever, and a sub-second function.
The Venus 220 features the following functions:
- Stem wind, switching by crown or lever
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 2.90 x 0.230 x 540 x 18.0 mm | DBH | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents

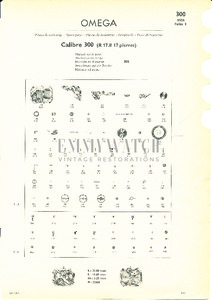

Parts Listing
