Venus 214
Ligne: 16.25'''
Jewels: 15
Power Reserve: 30 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1936
Diameter: 36.8 mm
Height: 3.95 mm
Hands: 1.90 x 1.00 / 0.28 mm

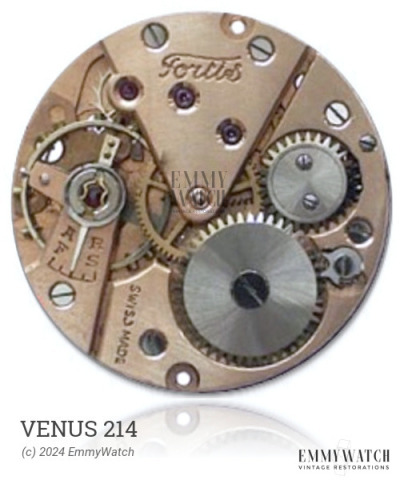

The Venus 214 is an open-face calibre watch movement that was commonly used around 1936. It offers the option of an optional bimetallic screw balance, although the differences between models 520 through 529 are not known. This movement supports several functions, including stem wind and set, as well as a sub-second feature.
The Venus 214 features the following functions:
- Stem wind and set
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.45 x 0.180 x 450 x 15.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
