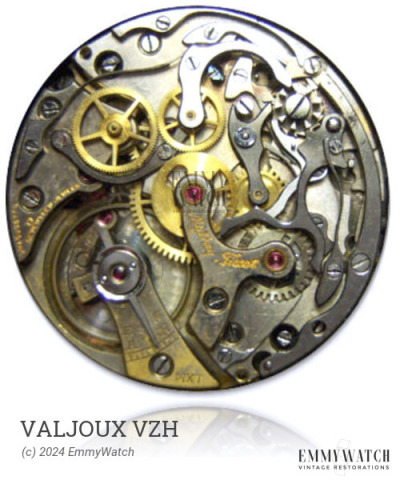

Valjoux VZH
Ligne: 16.25'''
Jewels: 15
Power Reserve: 30 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1936
Diameter: 36.8 mm
Height: 3.95 mm
Hands: 1.90 x 1.00 / 0.28 mm
The Valjoux VZH is an open face calibre watch movement that was available with an optional bimetallic screw balance. It is part of a series of movements numbered 520 through 529, with no known differences between them. The Valjoux VZH movement features stem wind and set mechanism, a sub second function, and was commonly used in watches produced around 1936.
The Valjoux VZH features the following functions:
- Stem wind and set
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.45 x 0.180 x 450 x 15.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
