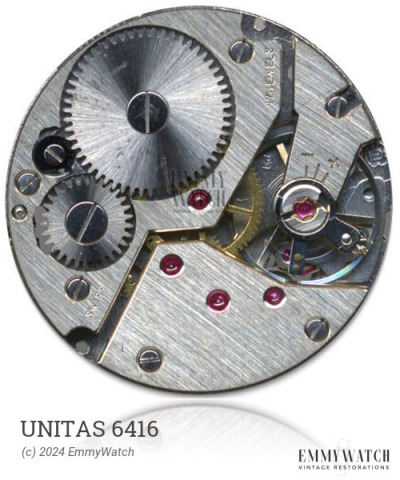

Unitas 6416
Ligne: 8 x 9'''
Jewels: 15
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1937
Size: 18.6 x 20.8 mm
Height: 3.6 mm
Hands: 1.08 x 0.65 mm
The Unitas 6416 manual wind watch movement features a gold escapement wheel. This movement was available in a steel-case watch in 1937 for CHF 74.00. It includes functions such as sub seconds, sweep seconds, non-sweep seconds variations, and covered winding. The Unitas 6416 movement was used during the period around 1937.
The Unitas 6416 features the following functions:
- Manual Winding
- Sub Second
- Sweep seconds and non-sweep seconds variations
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.090 x 360 x 9.5 mm | GR4104 | Manual | Buy mainspring |
| 1.50 x 0.090 x 300 x 8.5 mm | GR4101 | Manual | Buy mainspring |
| 1.50 x 0.085 x 280 x 8.0 mm | GR4088 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
