Unitas 6388
Ligne: 13'''
Jewels: 17
Power Reserve: 41 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1955
Diameter: 29.4 mm
Height: 3.8 mm
Hands: 1.50 x 0.80 / 0.20 mm

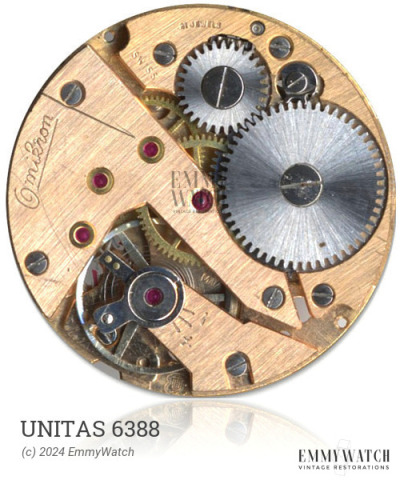

The Unitas 6388 is a German military movement, also known as the Wehrmachtswerk. It is similar to AS 1130 and shares similarities with various other calibers in the A. Schild line. It belongs to the 13.5''' group and is one of two movements with this size, the other being 1337 and 1511. The 1383 movement features manual winding, sub second, and was produced around 1955. It was eventually replaced by the AS 1188, which introduced direct sweep seconds. Other details or distinctions between these movements are currently not known.
The Unitas 6388 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.70 x 0.130 x 360 x 11.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
