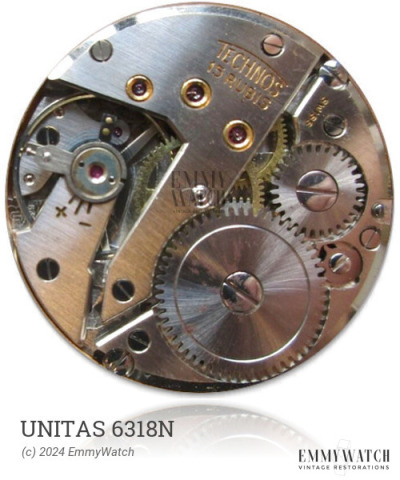

Unitas 6318N
Ligne: 19.5'''
Jewels: 11
Power Reserve: 14 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1960
Diameter: 44.8 mm
Height: 10.9 mm
Hands: 1.50 x 0.40 / 1.30 mm
Base: Hanhart 86
The Unitas 6318N is an open face calibre watch movement that incorporates a stop function with a pillar wheel. It features a barrel with Geneva stopwork, as well as shock protection implemented since around 1960. Notably, the movement includes a mobile stud carrier and a newly designed balance-stop and its guide introduced since approximately 1970. The Unitas 6318N offers a range of functions, including timer capabilities with 60-second accuracy, 60-minute and 10-hour counters utilizing a pillar wheel mechanism. Furthermore, it includes an addition timer, stem wind functionality, a sweep second hand, and a jumping center minute hand. The movement also includes a Timer Function and a Split Second Function. It was in use from approximately 1960.
The Unitas 6318N features the following functions:
- Addition timer
- Jumping center minute
- Split second function
- Stem wind
- Sweep second
- Timer, 60s (0.2s), 60min, 10h, pillar wheel
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 3096 | Ordinary/None | Buy staff |
| 4143 | Ordinary/None | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.70 x 0.190 x 18.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
