Unitas 6317
Ligne: 11.5'''
Jewels: 7/15
Power Reserve: 40 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1940
Diameter: 25.6 mm
Height: 4.7 mm
Hands: 1.30 x 0.85 x 0.32 mm

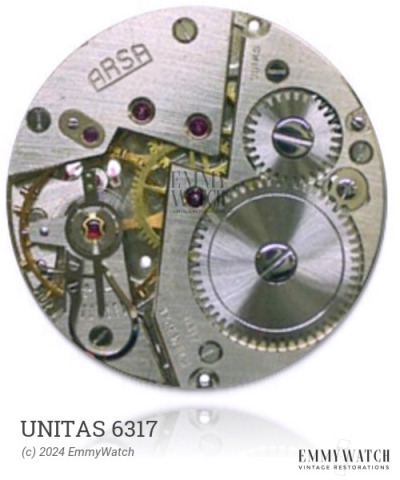

The Unitas 6317 is a manual wind mechanical watch movement that features a sweep seconds function. It is similar to the A. Schild 1041 and 1161 movements, with differences that are currently unknown. The Unitas 6317 was commonly used in watches around the 1940s.
The Unitas 6317 features the following functions:
- Manual Winding
- Sweep Seconds
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.70 x 0.100 x 300 x 9.0 mm | GR4879 | Manual | Buy mainspring |
| 1.70 x 0.100 x 290 x 9.0 mm | Manual | Buy mainspring | |
| 1.60 x 0.100 x 300 x 9.0 mm | GR4486 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
