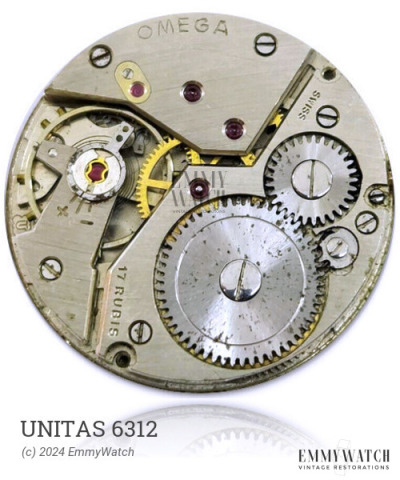

Unitas 6312
Ligne: 14'''
Jewels: 17
Power Reserve: 45 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1969-1978
Diameter: 31.3 mm
Height: 6.0 mm
Hands: 1.40 x 0.95 x 0.27 / 0.27 x 0.18 mm
Base: Valjoux 7733
The Unitas 6312 watch movement was produced from 1969 to 1978. It features three different reset hammers. This manual-wind chronograph movement offers a 60-second subdial and can measure up to 30 or 45 minutes. The cam switching mechanism allows for accurate timekeeping and precise chronograph functionality.
The Unitas 6312 features the following functions:
- Manual-wind chronograph, 60s, 30/45min, cam switched
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.60 x 0.130 x 430 x 12.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents

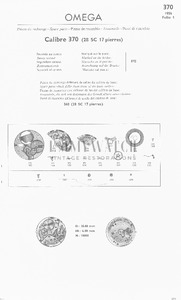

Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
