Unitas 6306
Ligne: 10.5'''
Jewels: 15/17
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1935
Diameter: 23.3 mm
Hands: 1.40 x 0.80 mm

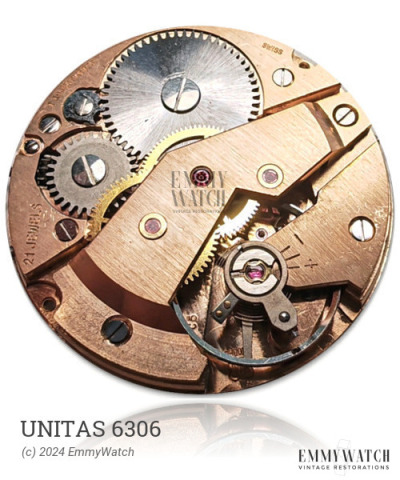

The Unitas 6306 watch movement is a manual wind movement that features a bimetallic screw balance. It is part of a series of Felsa movements, including the 86, 88, 89, 136, 138, 285, and 327, although the specific differences between these movements are not known. The Unitas 6306 movement was utilised in watches around the year 1935 and incorporates a sweep second function.
The Unitas 6306 features the following functions:
- Manual Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.70 x 0.095 x 320 x 9.0 mm | GR4870 | Manual | Buy mainspring |
| 1.70 x 0.100 x 290 x 9.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
