Unitas 432
Ligne: 11.5'''
Jewels: 1/17
Power Reserve: 38 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1970
Diameter: 26 mm
Height: 3.9 mm
Hands: 1.80 x 1.30 x 0.20 mm

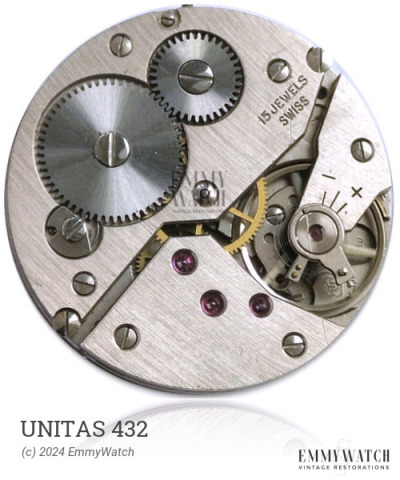

The Unitas 432 watch movement features a pin-lever escapement and utilizes a stem mechanism without a setting-lever spring. Notably, the train and hand gear are separately driven by the barrel. This movement is manually wound, does not include a second hand, and is commonly used in watches produced around 1970.
The Unitas 432 features the following functions:
- Manual Winding
- Pin lever
- Without Second Hand
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.110 x 340 x 10.0 mm | GR3700 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
