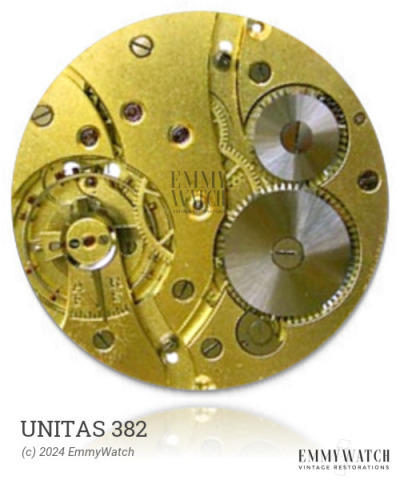

Unitas 382
Ligne: 8.75'''
Jewels: 15/17/21
Power Reserve: 44 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1955
Diameter: 19.7 mm
Height: 3.0 mm
Hands: 1.20 x 0.65 / 0.18 mm
Base: A. Schild 1193
The Unitas 382 is a manual wind watch movement with a sub-second function, commonly used around 1955. It is similar in appearance to several other calibers with a height (H) of 3.45mm. Notable features include a gold escape wheel and an Incastar regulator, which is recognized as the only widely produced regulator incorporating a free oscillating hairspring. It does not have a separate escape-wheel cock. There is limited information available on the differences between the 970 II, 1193, 1397, 1415, and 1534 calibers.
The Unitas 382 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.30 x 0.080 x 245 x 7.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
