Unitas 380
Ligne: 10.5'''
Jewels: 15/17
Power Reserve: 40 hrs
Frequency: 18000 vph
Type: Manual Wind
Diameter: 23.3 mm
Height: 3.85 mm
Hands: 1.30 x 0.70 / 0.21 mm

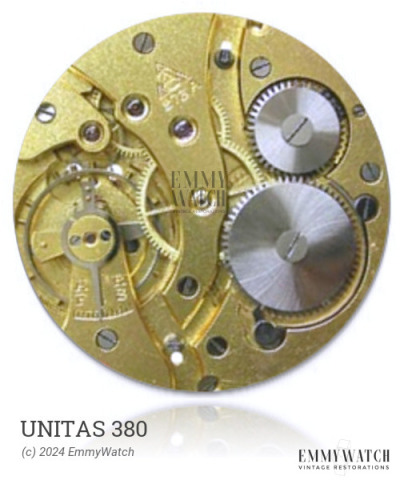

The Unitas 380 is a manual-winding mechanical watch movement, featuring a sub-second function. It shares similarities with the Venus 180 and 181 movements, with some differences in bridge shapes; however, the specific distinctions between these three movements are not known.
The Unitas 380 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.80 x 0.110 x 300 x 9.0 mm | GR5275 | Manual | Buy mainspring |
| 1.75 x 0.110 x 300 x 9.0 mm | GR5155 | Manual | Buy mainspring |
| 1.70 x 0.110 x 285 x 9.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
