Unitas 353
Ligne: 13'''
Jewels: 17
Power Reserve: 47 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1960
Diameter: 29.4 mm
Height: 3.85 mm
Hands: 1.50 x 0.90 / 0.20 mm
Base: Unitas 6310

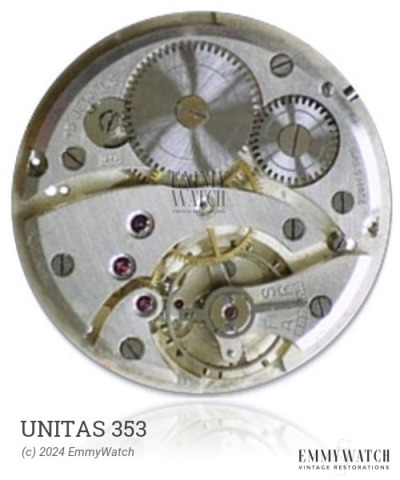

The Unitas 353 is a mechanical watch movement commonly referred to as the Wehrmachtswerk or Germany Military Movement. It is a manual wind movement with a sub-second function. The specific differences between the 717 and 3903 variants are not known. The Unitas 353 movement was in use around 1960.
The Unitas 353 features the following functions:
- Manual Winding
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.70 x 0.130 x 360 x 11.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
