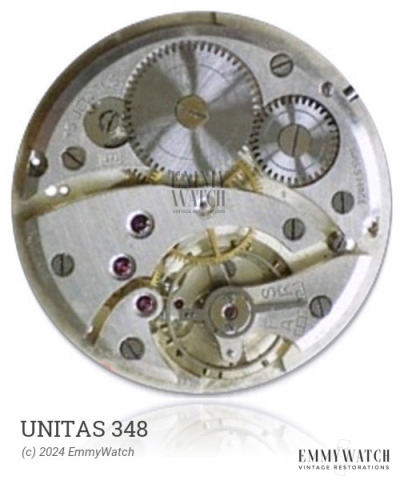

Unitas 348
Ligne: 10.5'''
Jewels: 15
Power Reserve: 36 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1925
Diameter: 23.75 mm
Height: 4.3 mm
Hands: 1.30 x 0.80 / 0.24 mm
The Unitas 348 is a manual wind watch movement with a sub-second function. It was commonly used around 1925 and is found in various bridge layouts, some of which may be labeled as AS 340. There are no known differences between multiple variations of this movement, listed with individual designations such as 302, 303, 311, 313, 323, 324, 328, 329, 333, 340, 342, 344, 361, 362, 365, 371, 383, 396, 473, 546, 549, 569, 585, 595, 603, 621, 629, 636, 694, 709, 714, 717, 720, 731, 775, 790, 803, 825, 915, and 951.
The Unitas 348 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.60 x 0.105 x 300 x 9.0 mm | GR4503 | Manual | Buy mainspring |
| 1.50 x 0.100 x 290 x 9.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
