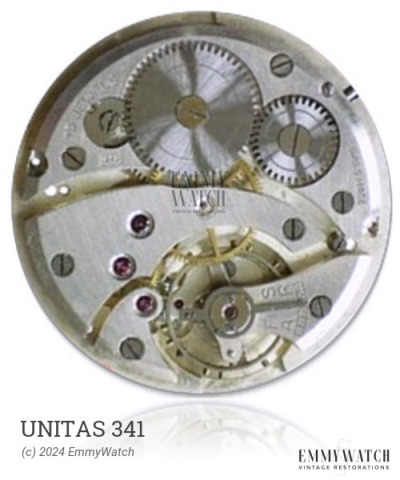

Unitas 341
Ligne: 7.75 x 11'''
Jewels: 15
Power Reserve: 47 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1940
Size: 17.6 x 25 mm
Height: 3.5 mm
Hands: 1.25 x 0.65 / 0.22 mm
The Unitas 341 is a manual wind mechanical watch movement with sub-second functionality. It was likely introduced around the 1940s. The differences between the Unitas 341 and other movements mentioned, such as the 735, 737-739, 742-744, 752, 755, 772, 783, 784, 786, 836, 837, 847, and 849, are unknown but may pertain to variations in base plates and bridge layouts.
The Unitas 341 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.30 x 0.110 x 320 x 10.0 mm | Manual | Buy mainspring | |
| 1.30 x 0.110 x 300 x 9.0 mm | GR3283 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
