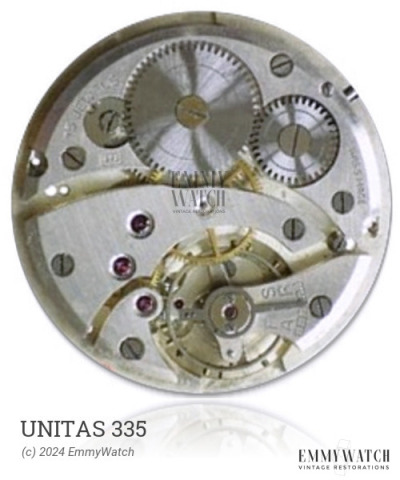

Unitas 335
Ligne: 11.5'''
Jewels: 15
Power Reserve: 50 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1945
Diameter: 25.6 mm
Height: 3.55 mm
Hands: 1.30 x 0.60 / 0.21 mm
The Unitas 335 is a mechanical watch movement with manual wind and sub second functions. Differences between the 310 through 329 models are not known. The movement was commonly used around 1945.
The Unitas 335 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.100 x 300 x 9.0 mm | GR4122 | Manual | Buy mainspring |
| 1.50 x 0.100 x 290 x 9.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
