Unitas 29
Ligne: 17'''
Jewels: 15
Power Reserve: 32 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1930
Diameter: 37.8 mm
Height: 3.85 mm
Hands: 1.75 x 1.10 / 0.22 mm

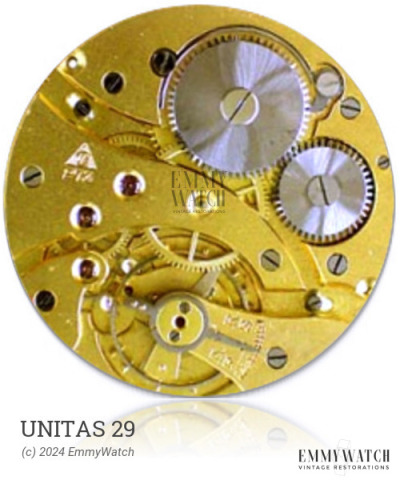

The Unitas 29 watch movement is a hunter calibre movement featuring a Breguet hairspring. The specific differences between the 784 and 786 are not known. The movement is designed for stem winding and setting, and incorporates a sub-second function. It was commonly used during the period of approximately 1930.
The Unitas 29 features the following functions:
- Stem wind and set
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.180 x 480 x 15.0 mm | GR3847 | Manual | Buy mainspring |
| 1.40 x 0.190 x 430 x 15.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
