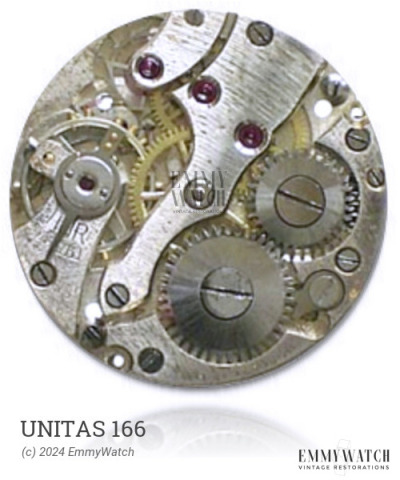

Return To ShopThe Unitas 166 watch movement, produced around 1915, encompasses specific technical features. These include a hunter calibre, a bimetallic screw balance featuring two adjustment screws, and a Breguet hairspring. Additionally, the movement can be equipped with an optional Reed's regulator and showcases varying bridge shapes. As for its functions, the movement offers stem winding and setting capabilities, as well as a sub-second feature.
The Unitas 166 features the following functions:
Dimensions | GR Reference # | End Type | Buy |
---|---|---|---|
2.10 x 0.200 x 490 x 16.5 mm | Manual | Buy mainspring | |
2.10 x 0.190 x 520 x 16.0 mm | GR6080 | Manual | Buy mainspring |
Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
---|
Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
---|
Part Description | Reference # | Alternate | Buy |
---|---|---|---|
BARREL ARBOR | 195/564 | Buy part | |
PALLET ARBOR | 72S/124P | 714/LAN 39 | Buy part |
SCREW, CLICK | 5425/238 | 5425/RECORD 433 | Buy part |
SCREW, DIAL SIDE | 5750/262 | Buy part | |
SCREW, PLATE | 5110/343 | Buy part | |
SCREW, PLATE | 5110/344 | Buy part | |
SCREW, RATCHET WHEEL | 5415/315 | Buy part | |
STAFF | 100/639 | Buy part | |
STEM | 200/1373F | Buy part |
