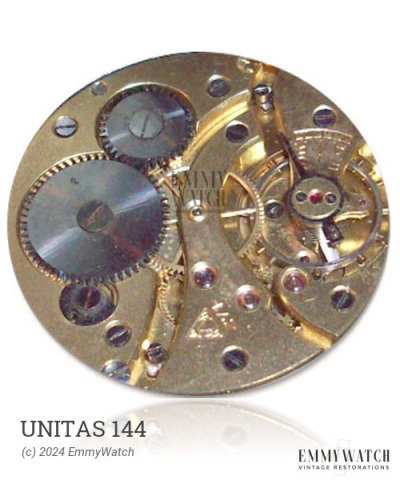

Unitas 144
Ligne: 8.75'''
Jewels: 15
Power Reserve: 36 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1940
Diameter: 19.75 mm
Height: 3.5 mm
Hands: 1.20 x 0.70 / 0.18 mm
The Unitas 144 watch movement is a mechanical movement with manual winding and sub-second function. It was widely used during the period around 1940. There are no known differences between the Unitas 200, 201, and 202 movements based on available information.
The Unitas 144 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.60 x 0.080 x 250 x 7.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| GIB/BOLT INCA 240X19 THICK | 400/1 | 180.19/INCA #11 | Buy part |
| JEWEL, INCA BALANCE 135X50X09 | 400/11 | 111.09/INCA#8 | Buy part |
| JEWEL, INCA UPPER CAP 120X27 | 400/7 | 121.11/INCA #5 | Buy part |
| JEWEL, UPPER CAP INCA 120X18 | 400/8 | 122.11/INCA #6 | Buy part |
| SCREW, INCA 18X50 | 400/2 | 150.11/INCA #14 | Buy part |
| SHOCK SPRING, UPPER INCABLOC | 400/4 | 170.03/INCA #1 | Buy part |
| SHOCK UNIT, LOWER INCA | 400/32 | 100.20.9 | Buy part |
| UNIT, INCA UPPER SHOCK | 400/18 | 100.11.275.09 | Buy part |
