Tissot 784
Ligne: 12.5'''
Jewels: 17
Lift Angle: 49°
Power Reserve: 50 hrs
Frequency: 19800 vph
Type: Automatic
Period used: 1966-1969
Diameter: 28.4 mm
Height: 5.05 mm
Hands: 1.50 x 0.80 x 0.18 mm
Base: Omega 560

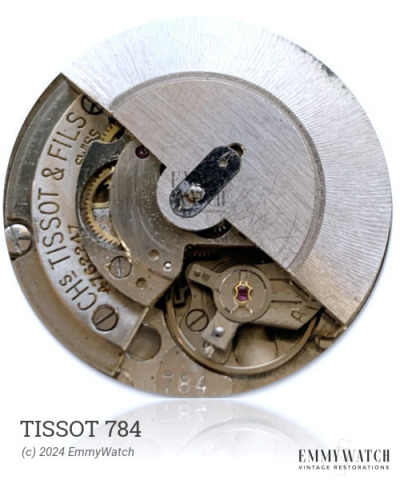

The Tissot 784 watch movement, produced between 1966-1969, consisted of approximately 5,800,000 units. It featured various functions including automatic winding, sweep seconds, and a quickset date feature activated by repeated pulling of the crown. The movement incorporated Incabloc Shock Protection and had central hour, minute, and sweeping seconds hands, with the date display positioned at 3 o'clock.
The Tissot 784 features the following functions:
- Automatic Winding
- Calendar
- Central hours; central minutes; central sweeping seconds; date at 3:00
- Date: quickset by repeated pulling the crown
- Incabloc Shock Protection
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.10 x 0.105 x 360 x 11.0 mm | GR2628X | Auto | Buy mainspring |
| 1.05 x 0.120 x 340 x 10.0 mm | GR2535X | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More | |||
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
