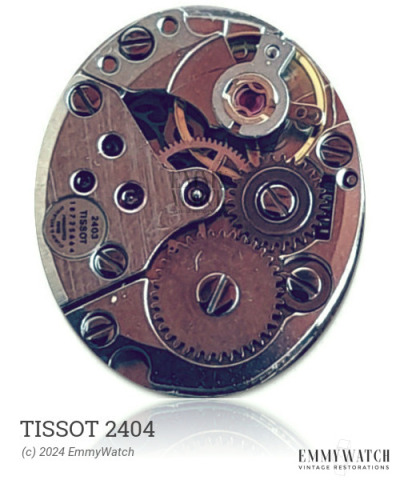

Tissot 2404
Ligne: 14'''
Jewels: 17
Power Reserve: 41 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1955
Diameter: 31.58 mm
Height: 3.8 mm
Hands: 1.50 x 0.80 / 0.20 mm
The Tissot 2404 watch movement is a mechanical movement that shares similarities with the AS 1130 movement, featuring a larger base plate. There are no known differences between the A. Schild 1486 and Tissot 2404 movements. This movement is designed for manual winding, incorporates a sub-second function, and was commonly used in watches manufactured around 1955.
The Tissot 2404 features the following functions:
- Manual Winding
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.75 x 0.135 x 340 x 11.5 mm | GR5170 | Manual | Buy mainspring |
| 1.70 x 0.130 x 360 x 11.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
