Tissot 2401
Ligne: 8.75'''
Jewels: 17
Lift Angle: 52°
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1965
Diameter: 19.7 mm
Height: 3.5 mm
Hands: 1.20 x 0.70 x 0.20 mm

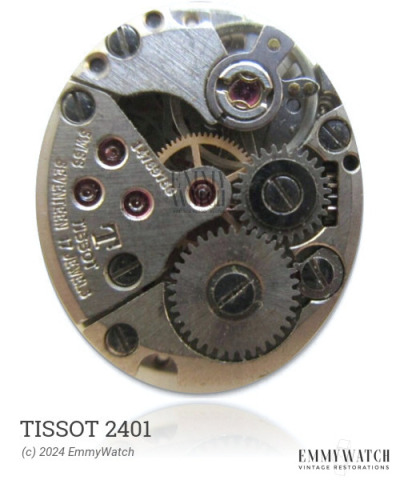

The Tissot 2401 is a manual wind mechanical watch movement featuring a sweep second hand function. It is equipped with an Offset Center Wheel and Sweep Seconds feature. This movement was commonly used in watches around 1965.
The Tissot 2401 features the following functions:
- Manual Winding
- Offset Center Wheel
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 4951 | Ordinary/None | Buy staff |
| 4952 | Incabloc | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.090 x 300 x 8.5 mm | GR3629 | Manual | Buy mainspring |
| 1.40 x 0.090 x 286 x 8.5 mm | Manual | Buy mainspring | |
| 1.35 x 0.090 x 280 x 8.0 mm | GR3498 | Manual | Buy mainspring |
| 1.30 x 0.080 x 260 x 7.5 mm | GR3203 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
Documents
Parts Listing
