Tissot 2280
Ligne: 5.5 x 7'''
Jewels: 17
Lift Angle: 52°
Power Reserve: 47 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1950
Size: 12.15 x 15.9 mm
Height: 3.5 mm
Hands: 1.00 x 0.55 mm

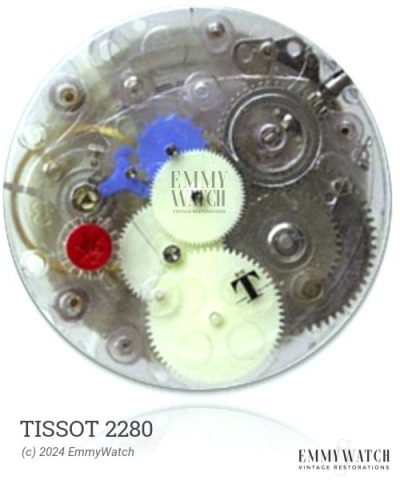

The Tissot 2280 watch movement is a manually-wound mechanical movement that was active around the year 1950. Its distinct features and differences from the Fleurier 434 movement are not known from the provided information.
The Tissot 2280 features the following functions:
- Manual Winding
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 4441 | Ordinary/None | Buy staff |
| 4917 | Ordinary/None | Buy staff |
| 4749 | Incabloc | Buy staff |
| 5158 | Incabloc | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.065 x 220 x 6.0 mm | GR3568 | Manual | Buy mainspring |
| 1.40 x 0.070 x 240 x 5.5 mm | GR35771 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
