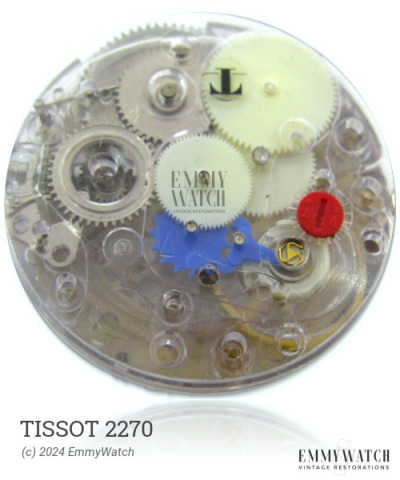

Tissot 2270
Ligne: 5.25 x 6.75'''
Jewels: 17
Lift Angle: 50°
Power Reserve: 48 hrs
Frequency: 19800 vph
Type: Manual Wind
Period used: 1971-1972
Size: 11.7 x 15 mm
Height: 3.25 mm
Hands: 1.00 x 0.50 mm
The Tissot 2270 watch movement, manufactured between 1971 and 1972, is characterized by its small size and has a production volume of 9000 units. It is based on the IWC 431 movement but incorporates a ring balance and excenter regulator. Additionally, it is a manual wind movement.
The Tissot 2270 features the following functions:
- Manual Winding
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| PALLET FORK AND AR BOR | 710/IWC 432 | Buy part | |
| ROLLER | 730/IWC 432 | Buy part | |
| STEM | 401/530 | Buy part |
