Tissot 17.5-23
Ligne: 19'''
Jewels: 15/16
Power Reserve: 40 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1898-1904
Diameter: 41.9 mm
Height: 7.0 mm
Hands: 1.80 x 0.65 / 0.25 mm

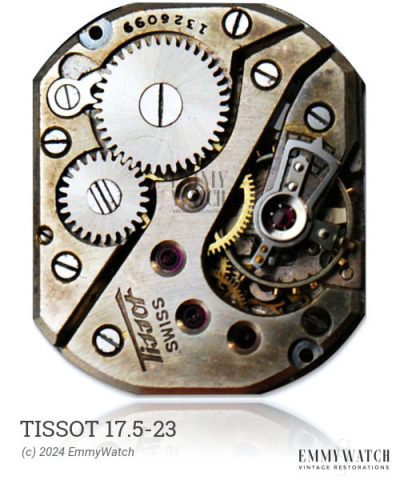

The Tissot 17.5-23 watch movement is a hunter calibre movement with a stem wind and lever set function. Produced during the period of 1898-1904, it saw a total of 2400 units being manufactured. The movement features a bimetallic screw balance with 4 adjustment screws and utilizes a Breguet hairspring. Additionally, it incorporates a sub second function.
The Tissot 17.5-23 features the following functions:
- Stem wind and lever set
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
