Tissot 17
Ligne: 11.5'''
Jewels: 17
Lift Angle: 52°
Power Reserve: 43 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1967
Diameter: 26 mm
Height: 4.5 mm
Hands: 1.50 x 0.90 x 0.20 mm

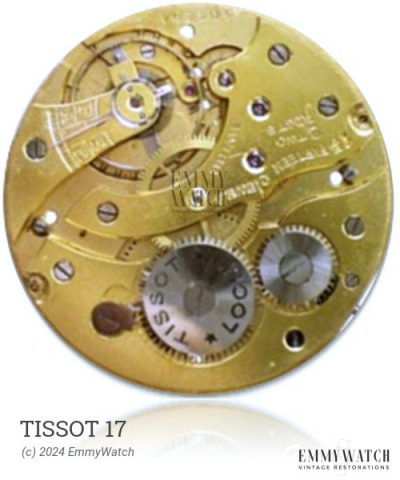

The Tissot 17 watch movement is a manual wind mechanical movement that features a sweep second hand and incorporates a date function that is set by changing the 21-24 hour position of the dial. It is equipped with shock protection and includes a calendar display. The movement was used during the approximate period of 1967.
The Tissot 17 features the following functions:
- Calendar
- Date: set by changing 21-24 hours
- Manual Winding
- Shock Protection
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.30 x 0.110 x 320 x 9.5 mm | GR3284 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
