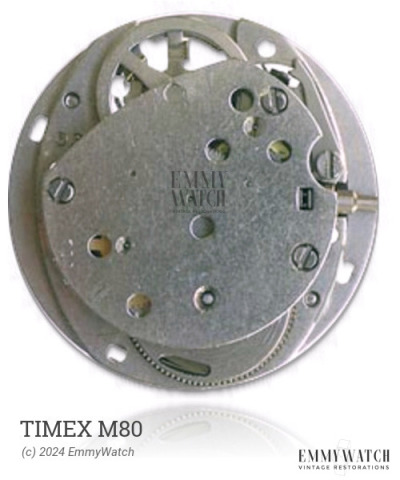

Timex M80
Jewels: 15
Power Reserve: 34 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1908-1917
Diameter: 43.1 mm
Height: 6.65 mm
Hands: 1.65 x 0.92 / 0.25 mm
Base: Heuer 12
The Timex M80 watch movement, produced between 1908-1917 with a total of 22,000 units, features an open face calibre known as model 7. It incorporates a bimetallic screw balance and a Breguet hairspring. The movement includes a negative stem mechanism, which allows for switching between winding and setting positions using the stem. While the 366 shares similarities with other models like the 210, it includes modified escapement. Additional functions of the Timex M80 movement include stem winding with switching facilitated by either the crown or lever, as well as a sub-second display.
The Timex M80 features the following functions:
- Stem wind, switching by crown or lever
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 2.64 x 0.190 x 560 x 16.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
