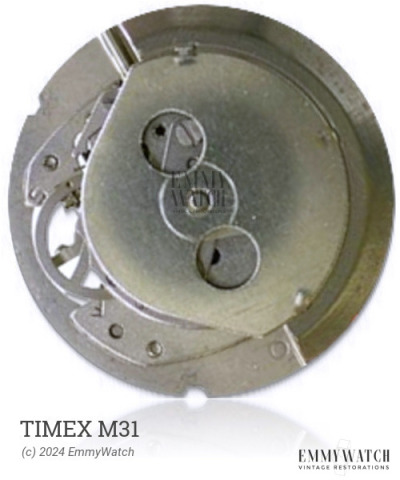

Timex M31
Ligne: 7.75'''
Jewels: 17/30
Power Reserve: 39 hrs
Frequency: 216000 vph
Type: Automatic
Period used: ~1965
Diameter: 17.5 mm
Height: 4.0 mm
Hands: 1.10 x 0.60 mm
Base: Buren 04
The Timex M31 watch movement is a detached manual wind movement with selfwinding gear that utilizes a pinion floating between two large jewels for direction switching. It features a ratchet on the dial side and a crown mechanism with a rocker bar. This movement is automatic and was commonly used around the period of 1965.
The Timex M31 features the following functions:
- Automatic Winding
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.00 x 0.080 x 220 x 7.0 mm | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
