Standard TIME 92
Ligne: 10.5'''
Jewels: 17
Power Reserve: 43 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1950
Diameter: 23.7 mm
Height: 3.8 mm
Hands: 1.30 x 0.70 / 0.22 mm

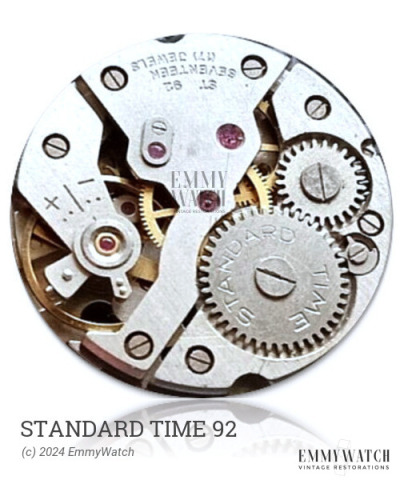

The Standard TIME 92 watch movement is a manual wind movement with sub seconds that was used around the period of 1950. The movement is available in two different sizes, with some baseplates sharing the same number. There is currently limited information regarding the specific differences between the 70, 701-709, and 7010-7018 series of this movement.
The Standard TIME 92 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.70 x 0.100 x 315 x 9.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
