Standard 69-21
Ligne: 10.5'''
Jewels: 15/17
Power Reserve: 40 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1940
Diameter: 23.7 mm
Height: 4.2 mm
Hands: 1.40 x 0.70 mm

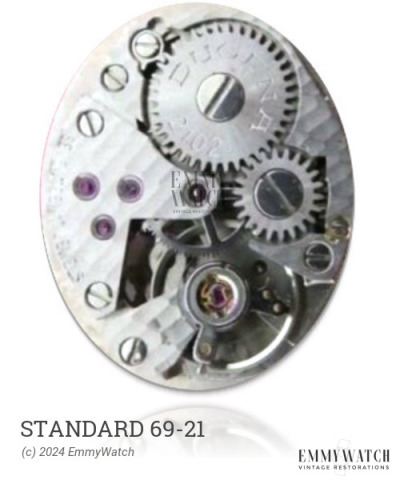

The Standard 69-21 watch movement is a mechanical movement with a manual winding function and a sub-second display. It was produced around 1940. The movement is available in various sizes, such as 1, 10.5''', 2, 10.5''', 30, 31, 50, 65 old, 66 old, 70 old, 71 old, 73 old, 76 old, 78, 90, 91, 107, 108, 110, and 112. The specific differences between these sizes, as well as the unique characteristics of each variant, are not known.
The Standard 69-21 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.70 x 0.100 x 320 x 9.0 mm | GR4880 | Manual | Buy mainspring |
| 1.70 x 0.100 x 290 x 9.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
