Return To ShopWatch Database

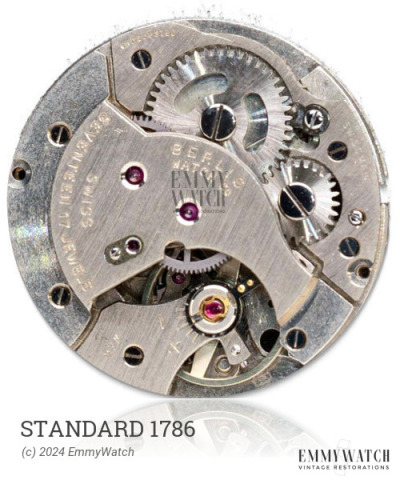

Standard 1786
Jewels: 7
Power Reserve: 33 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1886-1898
Diameter: 45.75 mm
Height: 10.1 mm
Hands: 2.46 x 1.27 / 0.30 mm
The Standard 1786 watch movement was manufactured between 1886 and 1898, with a total production of 659,000 units. It features an open face calibre, model 5, and is equipped with a bimetallic screw balance and a Breguet hairspring. Notably, the movement incorporates a ratchet under the base plate and a negative stem mechanism with a rocker bar. The movement offers stem winding, with the switching option available through either the crown or lever. Additionally, it includes a sub-second function.
The Standard 1786 features the following functions:
- Stem wind, switching by crown or lever
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 2.90 x 0.230 x 540 x 18.0 mm | DBH | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
