Smith 12.15
Ligne: 18.5'''
Jewels: 15
Power Reserve: 33 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1930
Diameter: 42.85 mm
Height: 4.7 mm
Hands: 2.00 x 1.20 / 0.28 mm

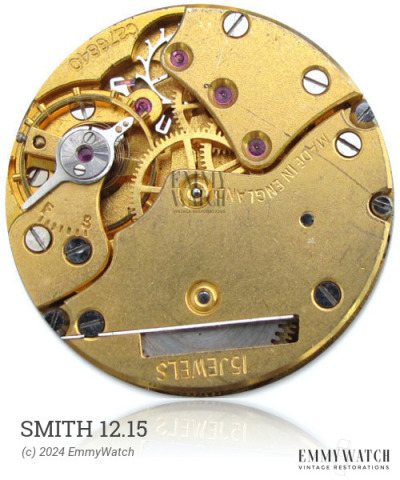

The Smith 12.15 mechanical watch movement, designed around 1930, features a hunter calibre and includes a bimetallic screw balance with 4 adjustment screws. It is equipped with a Breguet hairspring. The watch movement bears resemblance to the Langendorf 2-19''', although it is noticeably thinner. The movement offers functions such as stem wind and set, as well as a sub second feature.
The Smith 12.15 features the following functions:
- Stem wind and set
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.70 x 0.190 x 480 x 16.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
