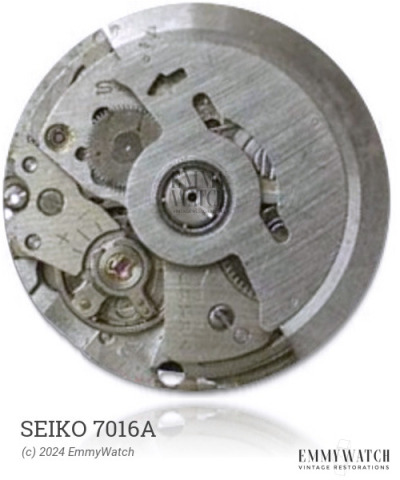

Seiko 7016A
Ligne: 11.5'''
Jewels: 25
Power Reserve: 44 hrs
Frequency: 18000 vph
Type: Automatic
Period used: 1942-
Diameter: 26.3 mm
Height: 5.85 mm
Hands: 1.50 x 0.90 x 0.20 mm
Base: Felsa 690
The Seiko 7016A watch movement, introduced in 1942, belongs to the first calibre family with bidirectional rotor winding. This movement features automatic winding and incorporates a sweep second hand.
The Seiko 7016A features the following functions:
- Automatic Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.110 x 350 x 10.5 mm | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
